Final Drive

This is the woodruff key .219in thick 1966-1980 All Models / Rear Hub 1980-1992 (up to VIN 44582) Corniche, Mulsanne, Spirit, Spur (no Turbo) / Final Drive

This is the woodruff key for the rear hub and final drive .2185" Thick  1966-1980 All Models (Rear Hub) 1980-1992 (up to VIN 44582) Corniche, Mulsanne, Spirit, Spur (no Turbo) (Final Drive)

This is the .875" x .220" thick woodruff key. 1966-1980 All Model - Rear Hub 1981-1990 Mulsanne, Spirit, Spur, Corniche up to VIN 31510 - Final Drive

This is the .875" x .2195" thick woodruff key. 1966-1980 All Models - Sits in the Rear Hub Axel 1981-1990 Mulsanne, Spirit, Spur, Corniche up to VIN 31510 - Final Drive

Washer for the driveshaft fitted on by bolt SPM1748. 1990-1992 Continental, Corniche, Eight, Mulsanne, Spirit, Spur, Turbo

This is an adjusting shim for the end button on the outer race driveshaft trunnion. Shims from 0.12" to 0.023" are available. 1966-1980 Corniche, Shadow, T, Shadow II, T2, Silver Wraith II 1980-1981 Mulsanne, Spirit, Spur (up to VIN 02556) 1981-1982...

This is the outer race on the driveshaft trunnion. It retains the needle roller. Note: 2 races Per trunnion = 4 total car (Sold Each)  1966-1980 All Models 1980-1981 Corniche, Mulsanne, Spirit, Spur (VIN 01001-02571) Model with Detroit Coupling

This is the oil seal for the rear camshaft models from VIN 50001 onward. It is also the oil seal on the RH output shaft on the differential models from VIN 08268 onward. 1984-1998 Arnage, Azure, Brooklands, Continentals, Corniche, Mulsanne, Spirit,...

This is the LH or RH output shaft final drive oil seal. 1981-1998 Silver Spirit, Silver Spur, Mulsanne, Turbo R, Pre Arnage, Azure

This is the stepless Small clip to secure the bellows onto the driveshaft. Supersession: CD6185 (6 Per Car Sold Each) 1981-1991 Continental, Corniche, Eight, Mulsanne, Spirit, Spur, Turbo (VIN 01517-34116)

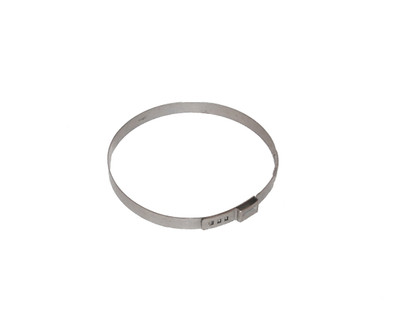

This is the stepless Large clip to secure the bellows onto the driveshaft. Supersession: CD6184 1981-1991 Continental, Corniche, Eight, Mulsanne, Spirit, Spur, Turbo (VIN 01517-34116)

This is the larger of the 2 circlips for the CV joint > half shaft lobro joint. 1982-1989 Turbo Models ONLY (VIN 8273-27793)
