Gaskets & Seals

This is the spark plug washer and there is one per plug. PART NUMBER: CD151 MODEL / CHASSIS APPLICABILITY   All Rolls-Royce and Bentley Models from 1956-1998 year models              ...

This washer has a number of applications, one of which is for the one shot pump.  * There are 4 required washers per engine (sold separately)  PART NUMBER: RF3274 MODEL / CHASSIS APPLICABILITY   1946-1955 RR...

This is the washer for the banjo bolt on the inlet manifold that retains the petrol drain pipe. This washer is also for the banjo bolt adaptor rocker oil feed. Note: 2 required per car (sold separately)  Bentley S1,2,3, Rolls-Royce Silver Cloud...

These are the original cotton valve stem seals fitted to all of the Straight 6 engines.   1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models  1956-1959 Silver Cloud I & Bentley S1 (6 Cylinder models only)

This is the circlip for the valve stems. * There are 6 per engine (sold separately)  PART NUMBER: EB1747 MODEL / CHASSIS APPLICABILITY   1946-1955 RR Silver Dawn & Silver Wraith, Bentley MkVI & R...

This is the rocker cover stud bush grommet for the valve cover, 6 Cylinder.  Note: 3 required per car (Sold Each)  PART NUMBER: EB3998  / SS-GVC MODEL / CHASSIS APPLICABILITY   1945-1955 Silver Wraith,...

This is the standard top hose for all standard bodies cars. 1956-1965 Silver Cloud I & Bentley S1 * Please be aware that it is slightly shorter than the current OE hose but does include the pre-formed bend in the hose.

This is the timing cover gasket. Part Number:     Model / Chassis Applicability   1956-1959 Silver Cloud I & S1 (6 Cylinders Only)

This is the square gasket between the rear of the thermostat housing and the front of the cylinder head. PART NUMBER: RH12899 MODEL / CHASSIS APPLICABILITY   Rolls-Royce Silver Cloud I & Bentley S1

This is the Side cover gasket cork for the "aluminum" cover.  Note: 2 Per car (Sold Each) 1946-1955 Rolls-Royce Silver Wraith, Silver Dawn & Bentley Mk-6, R-type 4.25L 1955-1959 Cloud I and S1

This is the side cover gasket.  Note: 2 Per Car  (Sold Each) 1955-1959 Rolls-Royce Silver Cloud I, & Bentley S-1 & Late Silver Wraith

This is the small sealing washer that sits below the lower fuel filter gauze F86423.From June 2017 these seals are manufactured in Viton to protect them against the effects of increased ethanol within modern petrol. PART...

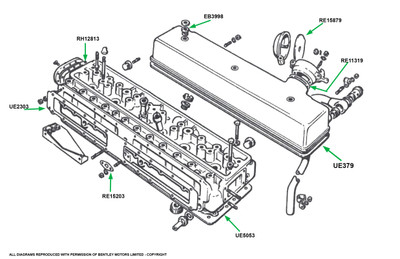

This is the Rocker Cover Gasket. You may need (1) of Part# WHT002908 - washer and (3) part# EB3998 - Grommets when making repairs 1956-1959 Silver Cloud I & Bentley S1 (6 Cylinder models only)

This is the oil pan gasket also known as the sump gasket.   Bentley S1 & Rolls-Royce Silver Cloud I

This is the Oil filler cap cork seal.4.5 Liter Silver Dawn up to current models 1946-1955 Silver Dawn & Silver Wraith, Bentley Mk-6, R-type 1956-1965 Rolls-Royce Silver Cloud I, II, III & Bentley S1, S2, S3 1965-1980  Silver Shadow...

This is the oil filler adapter gasket to rocker cover. PART NUMBER:  RE11319 MODEL / CHASSIS APPLICABILITY   1945-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn 1955-1959 Silver Cloud I & S1

This O'ring has a number of application. This O'ring can be found in the Suspension, Engine, Fuel System, & Steering.  PART NUMBER: CK610 MODEL / CHASSIS APPLICABILITY   1945-1955 Silver Wraith, Mk-6,...

This is a set of 24 cylinder liner seals. There is one upper seal (UE8582) and two lower seals (UE8581) per cylinder. They seal the oil and water galleries between the cylinder liner and the crankcase. When the seals go hard they allow oil and water to...

This is the intake manifold gasket. Part number was superseded from UE2303 Silver Wraith LWB, Silver Cloud I and S-1 only

This is the gasket for the hot spot on the inlet manifold. 1955-1959 Silver Cloud I and S-1

This is the gasket between each exhaust manifold and the twin downpipe assembly. Note:  2 gaskets required per car (Sold each) PART NUMBER: UE1175 MODEL / CHASSIS APPLICABILITY   1956-1965 Silver Cloud, Continental...

This is the exhaust manifold gasket for only Silver Cloud I and S-1 models.  There are 3 gaskets per manifold.  6 total per car (Sold Each) PART NUMBER: RH13108 MODEL / CHASSIS APPLICABILITY    1956-1959...

This is the engine decoke kit includes gaskets, washers, seals & hoses as per the Bentley kit. Fits: 1956-1959 Rolls-Royce Silver Cloud I & Bentley S-1

This is the aluminum washer for the lubrication hole. PART NUMBER: XB1077 MODEL / CHASSIS APPLICABILITY   1946-1955 Bentley MkVI & R Type, RR Silver Dawn & Silver Wraith

This is the cylinder head gasket models with 4887cc engines. 1946-1955 R-Type, Continental, Silver Wraith 1956-1959 Silver Cloud I, & Bentley S1

This is the gasket between the 2" carburetors and the inlet manifold. Note: 2 Per Car (Sold Each)  1955-1965 Silver Cloud, S-series, Continental & Phantom V with 2" carbs 1966-1980 Silver Shadow, Silver Spur & Bentley T (UP to...

This is the gasket between the main 2" carburetor body and the air intake. There is one gasket per carburetor. 1955-1959 Silver Cloud I and S-1 with 2" carb

4.25 Litre engine models - From 81HP & All 4.5 litre engine models, S1 & Silver Cloud I with 1.75" carbs These are the two gaskets between the carburetors and the inlet manifold. Note:  Requires 2 of these per car (sold...

This is the Bypass Hose for 6 cylinder models.  Part Number: RE12659 Model / Chassis Applicability   1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models 1956-1959 Silver Cloud I and S-1 6 cylinder...

This is a Aluminum Washer for the cooling system and oil pick-up.  This washer helps tighten and seal the spaces between the nuts and bolts.   Note: Original part # is XB1092R; superseded to WHT002908 PART...
