Brake Servo

This is the Servo Seal for the standard transmission that fits between the manual gearbox and the brake servo. 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn

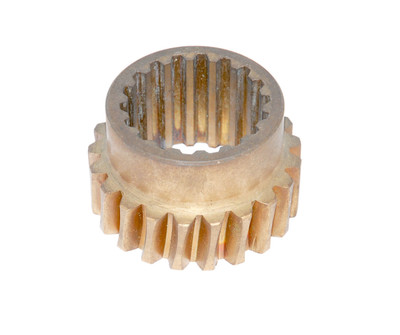

This is the brass servo gear that has 17 teeth. If your car requires the later style brass servo with 21 teeth look up part # RG8050 1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models  1955-1959 Cloud I and S-1 Phantom V (6 Cylinder Models...

This is the small locking pin between the brake servo rods and the cam levers. GB5085 (locking plate) is needed to lock the pin in place. 1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

This is the half nut for the King Pin & Brake Servo See Diagrams for Placement 1945-1955 Models

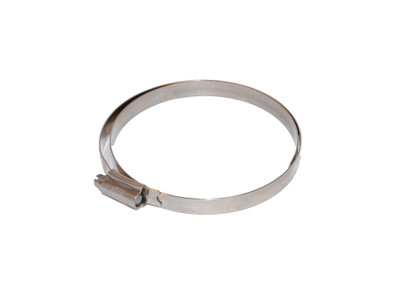

This is the jubilee clip that retains the outer sealing ring (UG2140) onto the brake servo cover plate (UG3528) 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn  1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

This is the gasket between the brake servo drive on the side of the manual gearbox and the brake servo. 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn (models with manual gearbox)

This is the thrust bearing for the cam levers on the outside of the brake servo. 1945-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn 1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

This is the flat rubber seal that sits inside the brake servo clover plate (UG3528) 1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models 1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

Brake Servo Lining with Rivets We also offer this part in a brake servo kit.  Look up part# CB-SK 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn   1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

This is the brake servo kit.  This kit Consist of brake servo seal RG6640 x 1, servo liner UG4372 x 1 and servo liner rivets x 10, brake servo felt D54399 x 1 and servo band seal UG2140 x 1. Note: RPI also offers these parts sold each.  Look up...

This is the friction washer that goes on the outside of the servo cover (UG3528) 1945-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn 1956-1965 Silver Cloud I,II,III, S-series, Continental & Phantom V

Brake Servo Felt / Inner Servo Felt Note: RPI offers this part in a brake servo seal kit. Look up part# CB-SK. 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn  1955-1965 Cloud I,II,III, S,2,3, Continental & Phantom V

This is the main servo cover plate for all models from 1945 to 1965. It comes with the friction washer (UG2936) RPI offers the rubber seal that fits into the servo cover, see RH377 1946-1955 Bentley MkVI & R Type, RR Silver Dawn & Silver...

This is the brake Servo Cork 1945-1955 Silver Wraith, Silver Dawn, R-type, Mk-6

This is the small bump rubber for the brake servo reverse lever. 1956-1965 Silver Cloud I,II,III, S-series, Continental, Phantom V

This is the bearing that is located on the first arm of the brake servo. 1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn 1955-1965 Cloud I,II,III & S1,2,3, Continental, Phantom V

This is the Brake Servo Band Seal Note: RPI offers this part in a brake servo seal kit.  Look up part# CB-SK. 1946-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn  1955-1965 Cloud I,II,III, S1,2,3, Continental & Phantom V

.1875in Diameter Steel Ball 1945-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn (Brake Servo Bearing Cage) 1955-1965 Cloud I,II,III & S-1,2,3 (Brake Servo Bearing Cage & 4 Speed Automatic Transmission Output) 1959-1968 Phantom V (4 Speed...

This ball bearing has a number of applications including:1. There are 3 ball bearings between the levers on the brake servo shaft2. On the MkVI track rod track rod pin FW19033. Manual Gearbox third motion shaft 1945-1955 Silver Wraith, Mk-6, R-type,...
