VIN 8334 to 20000

This is gasket for the water pump to the housing  1966-1980 Shadow, T-series, Shadow II, Silver Wraith II, Corniche 1981-1998 (From VIN 1001 onwards)

This is the viscous coupling with the threaded adapter on the back for screwing directly onto the water pump. 1982 - 1986 Silver Spirit, Silver Spur, Mulsanne VIN 7413-20000  1982 - 1984 Turbo models from VIN 04233-10068

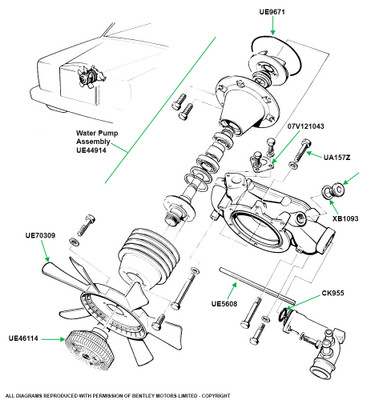

This is the sponge seal that sits between the water pump volute casing and the front lower crank cover on the front of the engine. Original part # was UE5608 now has been superseded by 07V121230 1959-1998 All Rolls-Royce & Bentley V8 Engines...

This is the large O ring on the inlet pipe that sits on the left hand side of the water pump volute casing, that sits on the front of the engine. Original part # was CK955, UR3776, these have been superseded by WHT002696. 1966-1980 Silver Shadow...

This is the font water pump bearing. 1981-1998 Silver Spirit, Silver Spur, Mulsanne, Turbo R, Arnage & Azure

This is the plastic cooling fan, first fitted to the Silver Shadow II and T2 from VIN 30001. It was subsequently fitted to all models up to 1987 (VIN 20000) except the later carburetor Turbo models (from VIN 10000 approx). This is a good used fan blade...

This is the coolant bypass gasket between the bypass tube and the top of the volute casing. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II1980-1986  Sliver Spirit, Sliver Spur, Mulsanne, Turbo R

This is a good USED 'S' shaped by pass tube. You will need part# UE9333 which are the O rings on each ends. This photo is for reference only and the part you receive might be slightly different. Please check with our sales staff if you have any...

This is the 'S' shaped by pass tube. You will need 2 of part# UE9333 to make a complete fit 1974 (VIN 18418 to 41686) 1981 to 1986 (up to VIN 16970)

This is the by pass elbow that is on top of the water pump volute casing for the "S" shape tube UE3717.  You will also need the gasket RH12756 that seals the elbow to the casing. 1974 (VIN 18418-41686)1981-1986 (up to VIN 16970)
