Gaskets & Seals

This is gasket for the water pump to the housing  1966-1980 Shadow, T-series, Shadow II, Silver Wraith II, Corniche 1981-1998 (From VIN 1001 onwards)

This is an aluminum washer.There are six of these in our decarb / decoke kit RH2379. They are the aluminum washer for the rocker cover stud.They are also the sealing washers for the choke stove pipe unions UE39345 on the later Silver Shadow and Bentley T...

This is a modern rubber valve stem seal that can be fitted to all cars from 1960 onwards as a modification to the original cotton valve stem seal (UE7428). Note: 8 Per Cylinder Head;  16 Required Total Per Car (Sold Each) 1960-1965  All...

This is the Grommet that covers the Rocker Stud.  RPI recommends replacing these grommets when replacing the rocker cover gasket. Note:  6 per car (sold each)  1959 - 1997 All V8 Models

Rubber Valve Cover Gasket / Rocker Cover Gasket From 1998 year onward V8 models  Can be retro-fitted to earlier V8 models as long as: 3 new valve cover grommets / isolators (07V109151PB) per head and 3 new distance pieces (UV11307PB) per...

All cars from 1959 through 1997 were originally fitted with these cork rocker cover gaskets.  From 1998 all V8 engine models were fitted with rubber gaskets (UV11305PAP) which can be retro-fitted to all earlier models as long as new isolators...

This is a full "top" decarbonizing kit also known as the head gasket kit.  1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II

This is the rubber plug that sits in the inside of the front timing cover.  1962-1965 V8 Models  1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II  1981-1990 Up to VIN 16970

Rear Cam Cover Gasket Supersession: UE5237 1959-1965 Cloud II,III & S2,3 1959-1968 Phantom V 1966-1980 Silver Shadow, T-series, Silver Wraith, T-2, Shadow II 1980-1988 Mulsanne, Spirit, Spur up to VIN 24501

This gasket is for the breather blanking plate located on the rear crankcase above the rear cam cover.Supersession UE6828 1959-1965 Silver Cloud II,III, S-2,3 & Phantom V 1966-1969 Shadow & T up to VIN 9000

This is the gasket for the fuel and oil level senders. This gasket is made from Nitrile rubber.  This gasket fits all senders from 1945 onward

This is the gasket for the fuel and oil level senders. We offer a Nitrile rubber gasket (UE73618NR). 1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models 1955-1965 Silver Cloud & S-series & Continental & Phantom V ...

This is the oil filter housing to the crankcase gasket. Original part # UE5710 has been superseded with RH12750. 1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II  1980-1998  Silver Spirit, Silver Spur, Mulsanne, Turbo...

This O ring has a number of application. This O ring can be found in the Suspension, Engine, Fuel System, & Steering.  1945-1955 Silver Wraith, Mk-6, T-type, Sliver Dawn 1956-1965 Silver Cloud, S-series, Continental, Phantom V 1966-1980...

This is the sealing ring on each end of the pick-up pipe to the oil pump. There are 2 required per car and sold each.  (see diagram for placement) 1966-1977 Models up to VIN 26705

This is the O ring that sits between the plug that locates the distributor drive shaft into the crankcase. 1959-1965 Cloud II,III & S2,3 & Phantom V 1966-1980 Silver Shadow I,II,III, T-series, Silver Wraith II 1981-1999 Silver Spirit, Silver...

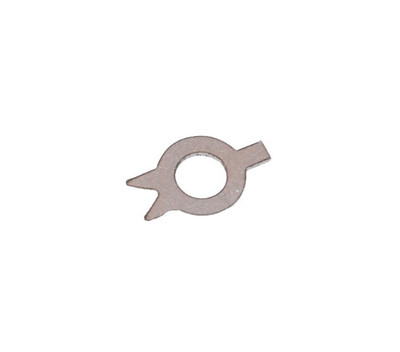

This is a 1/4" locktab with a number of applications:1. You will need 18 of these if rebuilding a MkVI or R Type engine2. 3 are required on a Silver Cloud I and S1 for the front thrust plate for the camshaft and 6 for the blanking plugs on the crankshaft...

This is the Intake Manifold Gasket.   Note: 4 Required Per Car (Sold Each)  1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II 1981-1998  Spirit, Spur, Mulsanne

This is the horseshoe gasket between the rear crankshaft cover and the crankcase. 1959-1965 Rolls-Royce Silver Cloud II, III & Bentley S2, S3, Phantom V 1966-1980 (1001-41686)

This is the gasket between the oil pump to crankcase. 1955-1965 Silver Cloud I,II,III,  S-1,2,3, Continental & Phantom V     1966-1980 Shadow, Shadow II, T1, T2, Corniche  1981-1990 Silver Spur, Silver Spirit, Mulsanne,...

This is the fiber washer between the choke hot air pipe union and the choke spring housing. 1955-1965 Silver Cloud I,II,III, S-series & Phantom V 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II 1981-1987 Silver Spirit,...

this is the Exhaust Manifold Gasket.  There are a total of 4 per head and a total of 8 required per car and they are sold separately.  1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II 1981-1998 Spur/Spirit and all...

.125UNF x 1.250 long Bolt has many areas found on the car.  Cloud I & S1 - Exhaust Manifold to Downpipe (3 bolts per manifold); Center, Front Silencer & Tail Pipe Silencer (6 bolts) & 12 bolts needed for Complete Exhaust  Cloud...

This is the Drain Plug Gasket fits all Models fitted with automatic gearbox  1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn Models (fitted with automatic gearbox) 1955-1965 Silver Cloud & S-series & Continental & Phantom...

This is the gasket between the distributor and the crank case. 1959-1965 Cloud II,III, S-2,3 & Phantom V 1966-1980 Silver Shadow I,II,III, T-series, Silver Wraith II 1980-1987 Mulsanne, Spirit, Spur Up to VIN 16970

This O ring is for the engine sump dipstick tube. 1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II, Corniche 1980-1998  Silver Spirit, Silver Spur, Mulsanne, Turbo R Pre Arnage, Azure

Copper washer for the oil transmitter / oil pressure sender (UE40480) to the oil filter pedestal. All cars with oil pressure sender UE40480

This is the gasket for the U tube (UE38993) Note: 2 Per Car (Sold Each) 1976-1980  Silver Shadow II, T-2, Silver Wraith II (VIN 30001-41686) 1980-1987  Silver Spirit, Silver Spur, Mulsanne, Turbo (VIN 01001-16970)

This is the coolant bypass gasket between the bypass tube and the top of the volute casing. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II1980-1986  Sliver Spirit, Sliver Spur, Mulsanne, Turbo R
