Phantom V & VI

This is one of the washers inside the power steering ram. Note:  This washer is part of the basic seal kit for the ram (CS-PSRBKIT) and the Ram Kit Master Overhaul (CS-PSRMASTERKIT) 1955-1965 Cloud I,II,II, S1,2,3 and Phantom V

This is the washer inside the power steering ram. Note:  This washer is part of the Master Overhaul Kit CS-PSRMASERKIT 1955-1965 Cloud I,II,III & S1,2,3 1959-1968 Phantom V

This is the spring stop button gearchange linkage, on automatic gearbox only. 1952-1955 R-type, Silver Dawn (automatic only) 1956-1965 Silver Cloud I,II,III and S-1,2,3, Phantom V

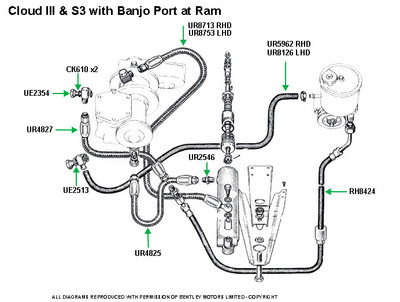

This is the return hose from the box to the pump on LHD models. Late Silver Cloud III (From SGT399), S3 (From B222FG), Phantom V (5VE1-5VD101)

This is the main internal seal for all power steering rams. We have found it to be more successful than the genuine seal.  Note: This seal is part of the basic seal kit for the ram CS-PSRBKIT and the Master Overhaul Kit CS-PSRMASTERKIT 1955-1965...

On Left Hand Drive cars this is the front hose from the steering box to the steering ram. Late Silver Cloud III (From SGT399), S3 (From B222FG), Phantom V (5VF1-5VD101)

This is a high pressure steering hose. On all Right Hand Drive models it fits between the steering box and the rear of the ram. 1959-1968 Bentley S2/3 & Rolls-Royce Silver Cloud II/III, Phantom V  From LSHS103 & B348FG it is also the rear...

This is the top lid seal for the Hobourn Eaton power steering pump. If you need the seal for the retaining bolt as well, Look up part# CD6083. 1956-1965 Silver Cloud I,II,III, S-series & Phantom V 1966-1967 Models (before VIN 4548) and fitted with...

This is the return hose that goes from the Box to Pump. S-2 & Early Cloud III / S-3 & Early Cloud III Right Hand Drive Models

This is the second section of the hose between the pump and box on RHD models.  The first section is RH8423 and connector UR3188. 1959-1965 Cloud II,III, S-2,3 & Phantom V Right Hand Drive Models

On all Silver Cloud II and S2 and very early Silver Cloud III (before SCX1) and S3 (before B2CN) this is the first section of high pressure hose from the steering pump to the box.On LHD models this hose fits directly between the pump and box.On RHD cars...

This steering column coupling fits tight up against the driving gear. There are 4 different sizes: UR3119 (.036in), UR3118 (0.48in), UR3117 (0.64in), UR3116 (0.80in) 1959-1968 Phantom V 1959-1965 Cloud II,III & S-2,3

  This steering column coupling fits tight up against the driving gear.   There are 4 different sizes: UR3119 (.036in), UR3118 (0.48in), UR3117 (0.64in), UR3116 (080in) 1959-1965 Cloud II,III & S2,3 1959-1968 Phantom V

This is the rubber steering column mounting sleeve. 1959-1965 Cloud II,III & S-2,3 1959-1968 Phantom V

This is the main steering box sealing ring. Note:  2 Per Steering Box (Sold Each) 1959-1965 Silver Cloud II, III and S-series 1959-1968 Phantom V

This is the Steering Box Bushings (3 pieces)  1959-1965 Silver Cloud II,III, S2,3 & Phantom V

This is the internal spring on the gear change lever linkage. 1952-1955 R-type, Silver Dawn (automatic only)  1956-1965 Silver Cloud I,II,III, S-series & Phantom V

This is the seal spreader for the power steering ram.  Note:  This spreader seal is in the Master Overhaul Kit part# CS-PSRMASTERKIT 1955-1965 Silver Cloud I,II,III & S-series 1959-1968 Phantom V

This is the sealing ring for the third bearing housing on the rear of the casing. 1959-1965 Silver Cloud II,III & S-2,3 1959-1968 Phantom V

These are the main sealing rings for the outer case of the spool valve. Note: 4 seals per valve (Sold Each) 1959-1965 Silver Cloud II,III and Bentley S-2,3 1959-1968 Phantom V

This is the cam roller for the steering box. No longer available and we have limited stock. 1955-1965 Cloud I,II,III & S-series 1959-1968 Phantom V

This is the retaining ring inside the power steering ram. Note:  This washer is part of the Overhaul kit part# CS-PSRMASTERKIT 1955-1965 Cloud I,II,III, S1,2,3 1959-1968 Phantom V

This is the o ring that seals the reservoir to the steering pump. The Cloud I & S1 models take 2 o rings and the 1959 onwards takes 4 per car. Please see diagrams for placement of this o ring on your cars steering pump. 1955-1965 Cloud I,II,III...

This is the master kit to redo the power steering ram.  This kit includes:  The o ring behind the piston inside the power steering ram, the main internal seal for all power steering ram (new upgraded seal that does not need the spreader), the...

This is the basic kit which includes the washer (CD670), seal (CD666), & o ring (CD702). 1955-1965 Cloud I,II,III & S1,2,3 1959-1968 Phantom V

This is the power steering pump relief valve.  1962-1965 Silver Cloud III & S-3 1962-1968 Phantom V

This is the power steering pump lid seal kit 1956-1965 Silver Cloud I,II,III & S-series 1959-1965 Phantom V 1966-1968 Models fitted with Hobourn Eaton Pump

Steering Pendulum Lever for right hand drive cars. 1959-1965 Phantom V

This is the O ring behind the piston inside the power steering ram. Note: This O ring is part of the basic steering seal ram kit CS-PSRBKIT and the Master Overhaul Kit CS-PSRMASTERKIT 1955-1965 Cloud I,II,III & S1,2,3 1959-1968 Phantom V

This is the small o ring for the reservoir to steering pump. Note: 2 per pump (Sold Each) 1955-1965 Cloud I,II,III & S1,2,3 1959-1968 Phantom V
