Rear Brakes - Drums, Shoes, Expanders

This is the Rear Brake Drum 1950- 1955 (From GT series onwards)

This is the sealing ring between the rear brake expander and the rear brake back plate. 1946-1955  Silver Wraith, Mk-6, R-type, Sliver Dawn

This is the rear brake expander plunger that fits RG3388 expander and RG3168(RH) assembly and RH7700(LH). 1945-1955 Silver Wraith, Mk-6, R-type, Sliver Dawn

This is the rear brake expander assembly. This is for the left hand side of the car.    PART NUMBER: RG6366 MODEL / CHASSIS APPLICABILITY   1946-1955 Silver Wraith, B-HP 241-249 & B-JO 2, 118-136...

 This half nut has a number of applications: 1. It is the half nut for the flexible brake hose union. It takes washer WHT002851 / UA1253Z. 2. On the S Type & Silver Cloud front brake hose CD6241 there is one nut at each end of each hose. It is...

This is the cap for the rear brake cylinder. 1945-1955 Silver Wraith, Mk-6, R-type, Silver Dawn

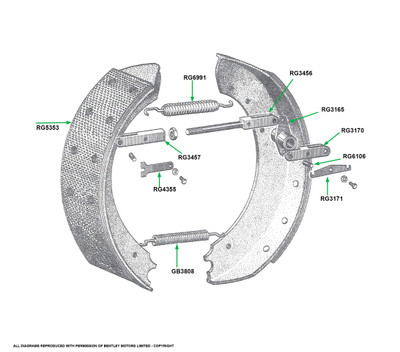

This is a Set of 4 brake shoes and lining.  Fits all REARS 1945-1955 but only fits FRONTS On B-FU and SBA series This brake shoe fits all rear wheels and the front wheels of early cars (before GT series) MKVI, R-Type, Silver Wraith & Dawn,...
