Fuses & Relays

This is the plastic, cream colored amplifier that sits beneath the dash top roll for the windscreen washer fluid level. 1977-1980 Shadow II and T-2, Corniche II 1981-1985 up to VIN 12001

This is the warning light module. This lights up showing brake pressure, fluid levels and master cylinder warnings. 1972-1977 Corniche, Shadow, T1 (VIN 13413-26700)

This is the seat relay Lucas 6RA #33272 that operates the front seats.   1966-1980 Silver Shadow I,II,III, T-series, Silver Wraith II

This is the relay for the stop lamp failure - it is located in the trunk / boot. 1972-1980 (from VIN 13706 onward) 1981-1995 Silver Spirit, Silver Spur, Mulsanne, Turbo R, Arnage

This is the starter motor relay. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II

This Lucas 6RA relay is for electric window lift system and horn relay. 1965-1980 Camargue (VIN 14674-50776), Corniche (10318-50757), Phantom VI (4108-4874), Shadow (1002-26700), Shadow II (30001-41601), Wraith (30083-41648), T1 (1001-26634),...

This is the relay for the alternator warning light. 1966-1970 VIN 1001-8861

This 6RA relay (Lucas number 33307D) has a number of applications: From 1970 the Shadow II and T2 had 3 relays mounted onto the bulkhead (firewall) for the air conditioning system.From 1977 (VIN 30001 onward) this is the windscreen washer & fuel...

This is a 6RA relay #33265D for the interior lighting. 1966-1976 Shadow, T-1,2, Wraith II, Shadow II, Phantom VI (VIN 1002-41648)

This is the Lucas 6RA  relay for the speed control also known as the cruise control cut out. 1971-1977  (Vin 9001 to 30000)

This is the printed circuit control unit relay assembly for the radio tape player. 1966-1980 SWB VIN 17518 onward and LWB Vin 16609 to 29000

This is a nut fastex that is used in different areas on the car. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II 1981-1998 Silver Spirit, Silver Spur, Turbo, Mulsanne

This is the neutral micro switch that is located on the steering column.  1977-1980 Shadow, Shadow II, T-2, Wraith II (30001 Series onward) 1981-1989 Spirit, Spur, Mulsanne, Turbo R, (VIN 01001-27798)

This is the micro switch for the handbrake warning light. 1966-196 Shadow & T Saloon / Shadow & T Coachbuilt VIN 1001-4548

This is a new old stock interior dimming relay #33222.  1966-1980 Silver Shadow, T-series, Silver Wraith II, Corniche

This is the indicator relay also known as the headlamp flicker relay.   1966-1977 Corniche, Shadow/T Coachbuilt & Shadow/T Saloon VIN 1001-26700

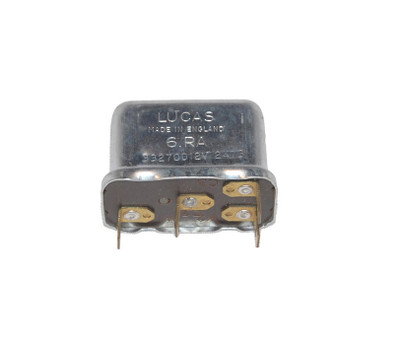

This is a new Lucas Headlamp Relay (6RA) 1966-1980 Shadow, T-series, Shadow II, T-2, Wraith II

This is the glass fuse extractor / handle. 1966-1980 All Models 1981-1986 Mulsanne, Spirit, Spur, Turbo (VIN 01001-15787)

This is the 30 amp glass fuse. 1966-1980  Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II

This is a 10 amp small glass fuse. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II 1981-1985 Up to VIN 13869

This is a flasher relay for cars without flasher repeaters.  1973-1980 Models from VIN 1001-16890

Tested good USED flasher relay. 1970-1980 Shadow, T, Shadow II, T-2, Wraith II (from VIN 14954 onward)

This is the flasher relay. 1970-1980 Shadow, T, Shadow II, T-2, Wraith II (from VIN 14954 onward)

This is the indicator flasher relay. Originally it was a Lucas 8FL unit. Superseded by UD19256 1971-1980 Shadow, Shadow II, Corniche & Bentley T1, T2, Corniche VIN 11867-50757

This is a tested good USED hazard flasher relay. Originally it was a Lucas 35053A 9FL unit. 1973-1983 Camargue, Shadow II, Wraith II, T2 (VIN 21759-50776)

This is a good used glass fuse extractor.  Often lost when getting vehicle serviced. 1966-1980 All Models 1981-1986 Mulsanne, Spirit, Spur, turbo (VIN 01001-15787) This photo is for reference only and the part you receive might be slightly...

This is the diode air conditioning change over circuit assembly. 1966-1980 Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II

This is the courtesy light delay unit. 1972-1980  From VIN 13706 onward 1981-1985  Up to VIN 10127

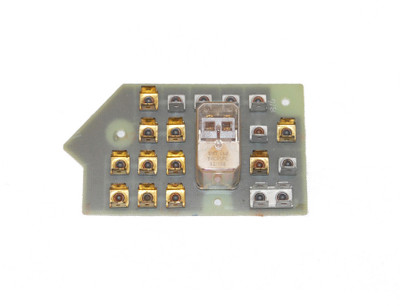

Terminal Board also call a Circuit Control Board 1971-1980 Corniche, Silver Shadow, T-series, Shadow II, T-2, Silver Wraith II (VIN 9770-26700) 1980-1989 Silver Spirit, Sliver Spur, Mulsanne, Turbo (VIN 01001-27799)

This is the circuit breaker 4 way. This is the otter breaker.  This is found on the circuit board.  1971-1977 Corniche (VIN 11837-22582), Shadow Saloon (VIN 11882-26696), T Saloon (VIN11883-26634)
